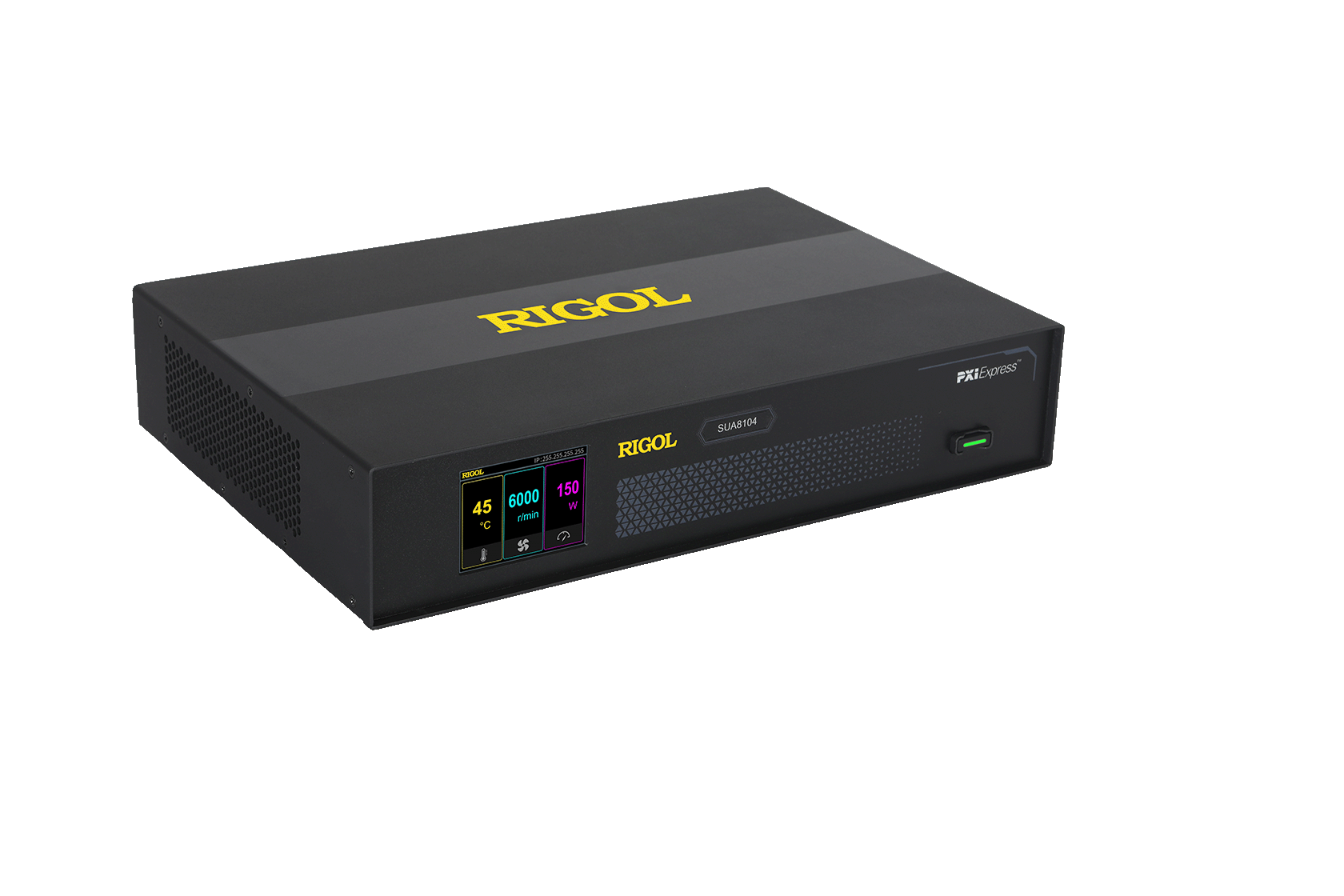

SUA8000 Series – Digital Transceivers - Image 3
Waveform Generators

SUA8000 Series – Digital Transceivers

Precision You Can Trust
NABL-Accredited Calibration | Available on Request

The SUA8000 Series Digital Transceivers integrate Arbitrary Waveform Generation, Signal Acquisition, and Waveform Recording into one compact platform. Designed for next-gen test and measurement, it combines hardware-level precision with AI-powered processing, enabling efficient, synchronized testing across multi-channel, multi-instrument systems..

Request Purchase
  • Detail
  • Special Features
  • Specification

The SUA8000 Series is built for advanced signal workflows where high-speed generation, capture, and real-time recording are crucial. Its modular architecture supports plug-and-play scalability and is well-suited for distributed systems where synchronization and data accuracy are vital.

The system offers two master control modules: one optimized for traditional processing, the other for AI-powered analytics. It’s equipped with a browser-based UltraArray Console that supports local and remote operation, system configuration, and secondary development using an extensive API library.

Compact and highly integrable, SUA8000 modules can be easily installed into production lines, lab setups, or mobile test environments. From asteroid tracking and radar pulse testing to automotive sensor simulation, SUA8000 units deliver real-time, intelligent waveform handling with unmatched precision.

  • 3-in-1 Functionality: Combines AWG, ADC, and Recorder in one system

  • Massive Sync Capability: Supports 100+ devices with <1 ps intra-device and <10 ps inter-device timing

  • Dual Master Control Options:
    – CPU Module with V2000 processor for control-heavy tasks
    – GPU-AI Module with Orin AGX for AI-enhanced signal processing

  • UltraArray Control Platform: Web-based GUI with built-in APIs for easy remote/local management

  • Compact High-Density Design: 1.5U chassis fits 8 channels; up to 128 channels in a 32U rack

  • Multi-Industry Compatibility: Ideal for radio astronomy, grid monitoring, radar, and automotive IF testing

Parameter Value
Core Functions Waveform Generation, Signal Acquisition, Recording
Synchronization Capacity >100 units; <1 ps intra-device, <10 ps inter-device
Master Control Options CPU (V2000) / GPU-AI (Orin AGX)
Control Interface UltraArray Web Console with built-in API
Rack Density 8 channels per 1.5U; 128 channels in 32U
Development Support Full API suite for automation & custom workflows
Application Areas Radar IF test, automotive sensors, power grid, astronomy
Use Case Fit R&D labs, production lines, distributed test systems
Integration Style Modular, space-efficient, API-controllable
