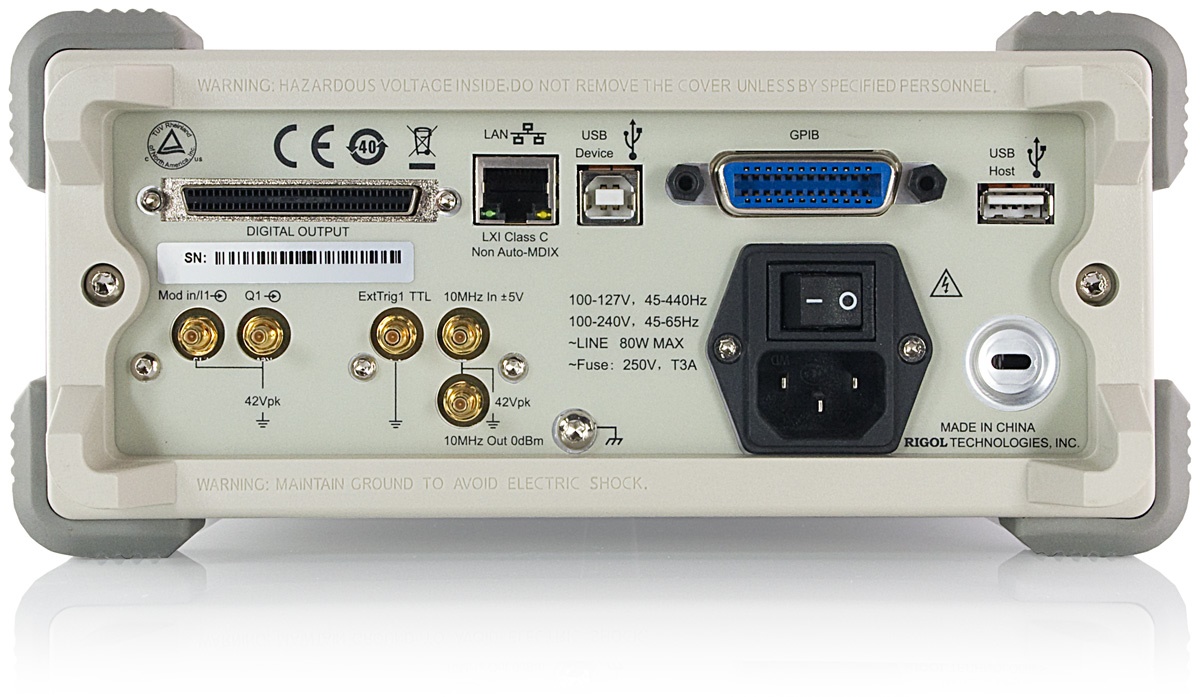

Rigol DG5351 - Image 2

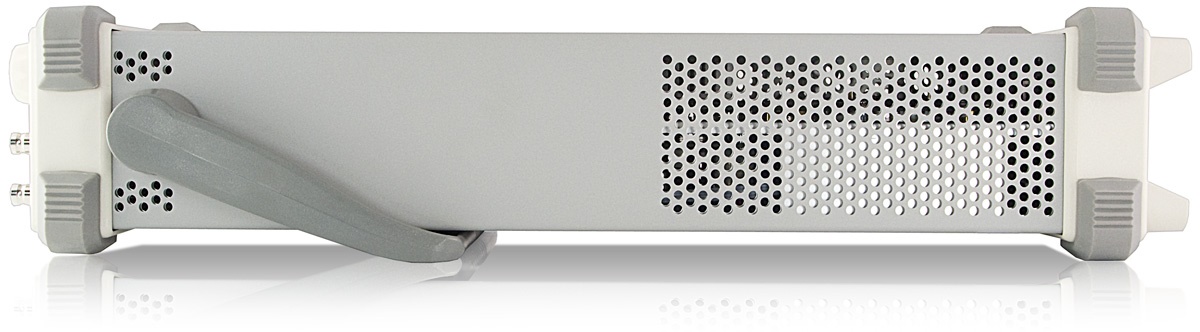

Rigol DG5351 - Image 3
Rigol DG5351 - Image 4
Waveform Generators

Rigol DG5351

Precision You Can Trust
NABL-Accredited Calibration | Available on Request
Rs. 1293162.00

The Rigol DG5351 is a high-quality, one-channel function / arbitrary waveform generator that can generate signals up to 350 MHz with 1 GSa/s sample rate and 128 Mpts of memory depth. This device provides precise waveform generation with a variety of modulation options, making it ideal for signal creation in research, development, and production testing..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

✨ Why It Helps (Cause → Effect)

  • 1 GSa/s sample rate → sharp timing → waveforms keep their shape at speed.

  • 128 Mpts memory → long patterns → continuous tests without repeats.

  • Many waveforms (sine, square, pulse, ramp, arbitrary) → one box → many jobs done right.

  • Advanced modulation (AM, PWM, FSK, IQ) → real-world stress → better validation of radios and DSP blocks.

🎛️ Operate Fast (Action → Result)

  • 4.3″ TFT LCD → signals and settings stay clear → fewer mistakes.

  • Backlit keypad → easy control in dim labs → quicker edits.

  • Simple menus → find → set → run → faster setups, smoother workflows.

🔌 Connectivity (Plug → Automate)

  • USB / LAN / GPIB → SCPI remote control → script runs, log results, slot into ATE.

  • PC integration → repeatable profiles → consistent, defensible data.

🧪 Where It Fits (Use → Payoff)

  • RF/communication tests → IQ + FSK → realistic link checks.

  • Signal simulation → custom arbs → mimic sensors and faults.

  • Frequency response → sweeps map passbands → tuning gets quick.

  • Production → stored setups → identical outputs across lines.

📦 Key Specs (Tight, Reader-First)

  • Max sine: 350 MHz

  • Sample rate: 1 GSa/s

  • Memory depth: 128 Mpts

  • Modulation: AM / PWM / FSK / IQ, burst, sweep

  • Display: 4.3″ TFT LCD, backlit keys

  • Interfaces: USB, LAN, GPIB

📡 AM Modulation
Change amplitude with your message → carrier grows/shrinks → info rides cleanly.

⏱️ PWM Modulation
Vary pulse width → control timing and average power → motors/LEDs respond smoothly.

🎚️ FSK Modulation
Hop between two tones → bits ride as frequency shifts → robust links in noise.

🧭 IQ Modulation
Blend I (in-phase) + Q (quadrature) → form complex constellations → tighter, cleaner spectra.

🗺️ IQ-Mapping Editor
Draw/customize symbol points → craft your constellation → match real radios and tests.

💥 Burst Function
Gate signal on/off → timed pulse trains → mimic time slots, save power.

📈 Sweep Function
Slide frequency (and more) across a range → reveal resonances and bandwidth → find sweet spots fast.

🏃 Frequency Hopping (Software Option)
Jump channels rapidly → dodge interference → keep wireless links reliable.

  • Feature Specification
    Model Rigol DG5351
    Max Frequency 350 MHz
    Sample Rate 1 GSa/s
    Memory Depth 128 Mpts
    Vertical Resolution 14 bits
    Amplitude Range 5 mVpp ~ 10 Vpp (50 Ω)
    DC Offset ±5 V (50 Ω)
    Display 4.3" TFT LCD with 16M true color
    Resolution 480 x 272 pixels
    Interfaces USB-Host, USB for PC connection, LAN, GPIB
    Dimensions (W x H x D) 263 mm x 107 mm x 505 mm
    Weight 4.3 kg (9.48 lbs)
    Supported Operating Systems Windows XP (32/64 bit), Vista (32/64 bit), Windows 7 (32/64 bit)
    Channels 1
    Waveform Types Sine, Rectangle, Pulse, Ramp, Arbitrary (9 predefined), Noise
    Frequency Range (Sine) 1 µHz – 350 MHz
    Frequency Range (Rectangle) 1 µHz – 120 MHz
    Frequency Range (Pulse) 1 µHz – 50 MHz
    Frequency Range (Ramp) 1 µHz – 5 MHz
    Frequency Range (Arbitrary) 1 µHz – 50 MHz
    Frequency Range (Noise) 250 MHz (-3dB)
    Frequency Resolution 1 µHz
