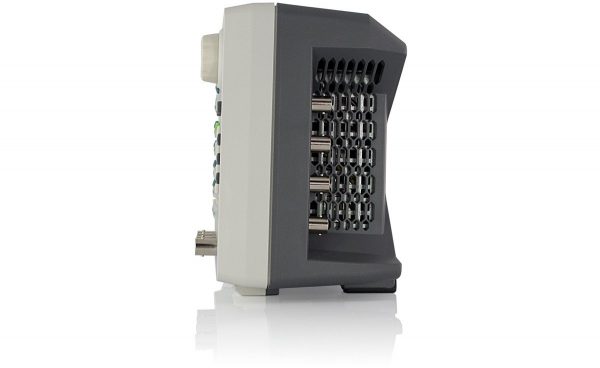

Rigol DG4162 - Image 3

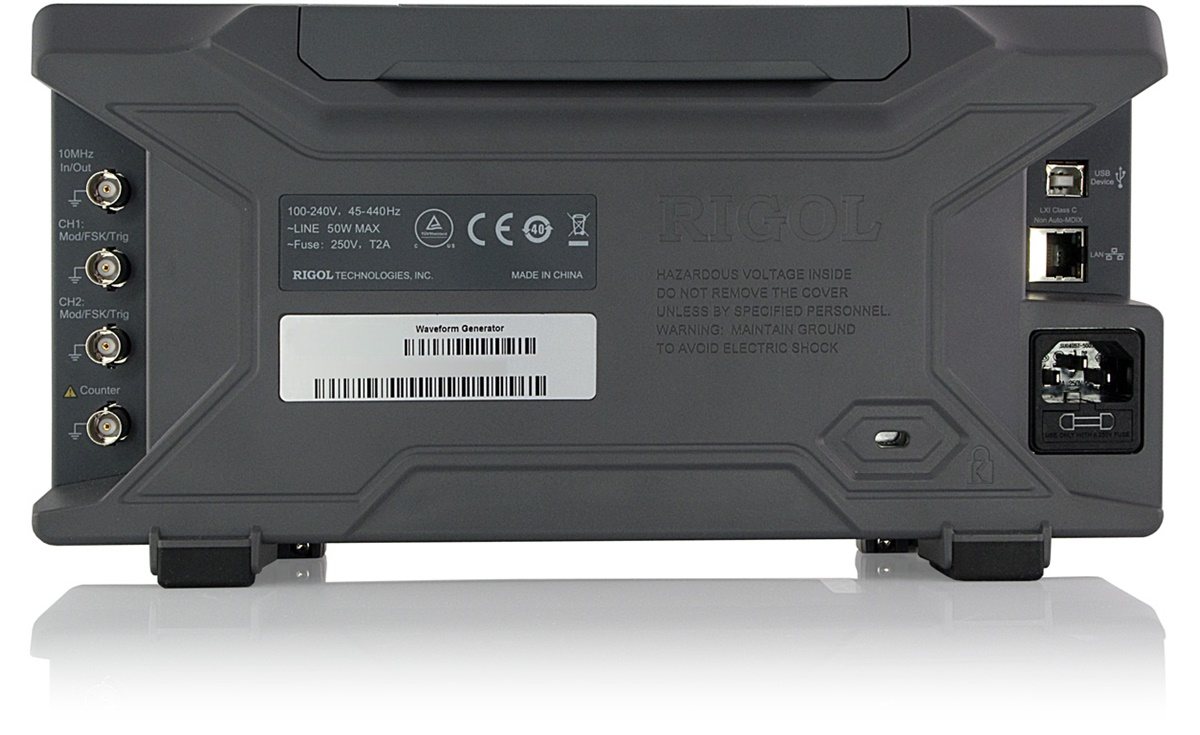

Rigol DG4162 - Image 4
Waveform Generators

Rigol DG4162

Precision You Can Trust
NABL-Accredited Calibration | Available on Request
Rs. 147795.00

The Rigol DG4162 is a high-quality two-channel function/arbitrary waveform generator with a 160 MHz bandwidth, 500 MSa/s sample rate, and 16 kpts memory. It is ideal for precise waveform generation with an intuitive interface, making it suitable for various engineering and testing applications..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

✨ What It Is
Two-channel function/ARB generator → clean basics and complex shapes → one box covers both.

⚡ Frequency & Speed
Sine to 160 MHz → fast signals stay sharp.
500 MSa/s sample rate → tiny time steps → accurate waveforms.

🧠 Memory For Detail
16 kpts memory → store custom shapes → replay without hiccups.

🧑‍🤝‍🧑 True Dual Channels
Two independent outputs → view both at once → sync phase when needed → test pairs quickly.

🎛 Waveforms You Need
Sine, square, ramp, arbitrary, and more → quick basics + custom cases → fewer tools on the bench.

🎼 Harmonic Generator
Overtones up to 16th order → adjust frequency, amplitude, phase → stress filters and amps, fast.

⏱ Built-In Counter
Measures frequency, period, pulse width, duty cycle → quick checks without another box.

🖥 Easy To Use
7″ display (800×480) → both channels visible → menus feel simple → fewer missteps.

📡 Where It Fits
R&D labs, classrooms, service benches → clocks, sweeps, and modulated tests → clear, repeatable results.



🧑‍🤝‍🧑 2 Channels (True Dual)
Two independent outputs → sync phases exactly → real dual-channel tests.

🎛 Arbitrary Signal Generation
ARB engine → recreate almost any waveform → pick from 150 built-ins → start fast, tweak later.

🔀 Analog + Digital, Independently
Separate channels → analog on one, digital on the other → complex scenarios made simple.

📈 Sweep Functions
Sweep a set frequency range → hold constant amplitude → run sine/square/ramp/ARB while sweeping.

🎼 Harmonic Signals
Overtones to 16th order → tune frequency, amplitude, phase → choose even, odd, all, or custom.

⏱ High-Resolution Counter
Measure frequency, period, pulse width, duty cycle → from 1 µHz up to 200 MHz.

📊 Counter With Statistics
History + stats view → watch drift and trends over time → catch flaky behavior early.

  • Max Frequency: 160 MHz (Sine)

  • Max Sample Rate: 500 MSa/s

  • Resolution: 1 µHz

  • Channels: 2

  • Memory: 16 kpts

  • Display: 7" TFT color display, 800 x 480 pixels

  • Interfaces: USB-Host, USB-device, LAN

  • Waveform Types: Sine, Square, Ramp, Arbitrary, Pulse, Harmonics (up to 16th order)

  • Frequency Counter: Measures from 1 µHz to 200 MHz

Model Comparison Overview:

Model Max Frequency Max Sample Rate Resolution Channels
DG4062 60 MHz 500 MSa/s 1 µHz 2
DG4102 100 MHz 500 MSa/s 1 µHz 2
DG4162 160 MHz 500 MSa/s 1 µHz 2
DG4202 200 MHz 500 MSa/s 1 µHz 2



Warranty: 3 years

The DG4162 provides flexibility for a range of testing applications, from signal integrity testing to waveform generation for wireless and communication applications. Its advanced features and intuitive design make it a powerful tool for professionals and students alike.
