SeaI/O-410N

Precision You Can Trust
NABL-Accredited Calibration | Available on Request
Rs. 30480.00

The SeaI/O-410N adds 16 optically isolated inputs and 16 Reed relay outputs to your SeaI/O network, compatible with all SeaI/O base units (Ethernet, USB, RS-485, RS-232)..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

The SeaI/O-410N is a versatile expansion module that integrates seamlessly into any SeaI/O network, extending I/O capabilities by adding 16 isolated inputs and 16 Reed relay outputs. It is powered by a 9-30VDC source and communicates through RS-485, making it perfect for distributed control applications.

With RS-485 line conditioning, the module allows simple termination and pull-up/pull-down resistor installation, ensuring robust data transmission even over longer distances. Whether you need to expand your existing Ethernet, USB, or RS-485 SeaI/O system, the SeaI/O-410N offers an efficient and flexible solution.

This expansion module comes equipped with metal straps and a 5-inch RJ45 interconnect cable to connect multiple units, enabling you to build a stackable RS-485 network.

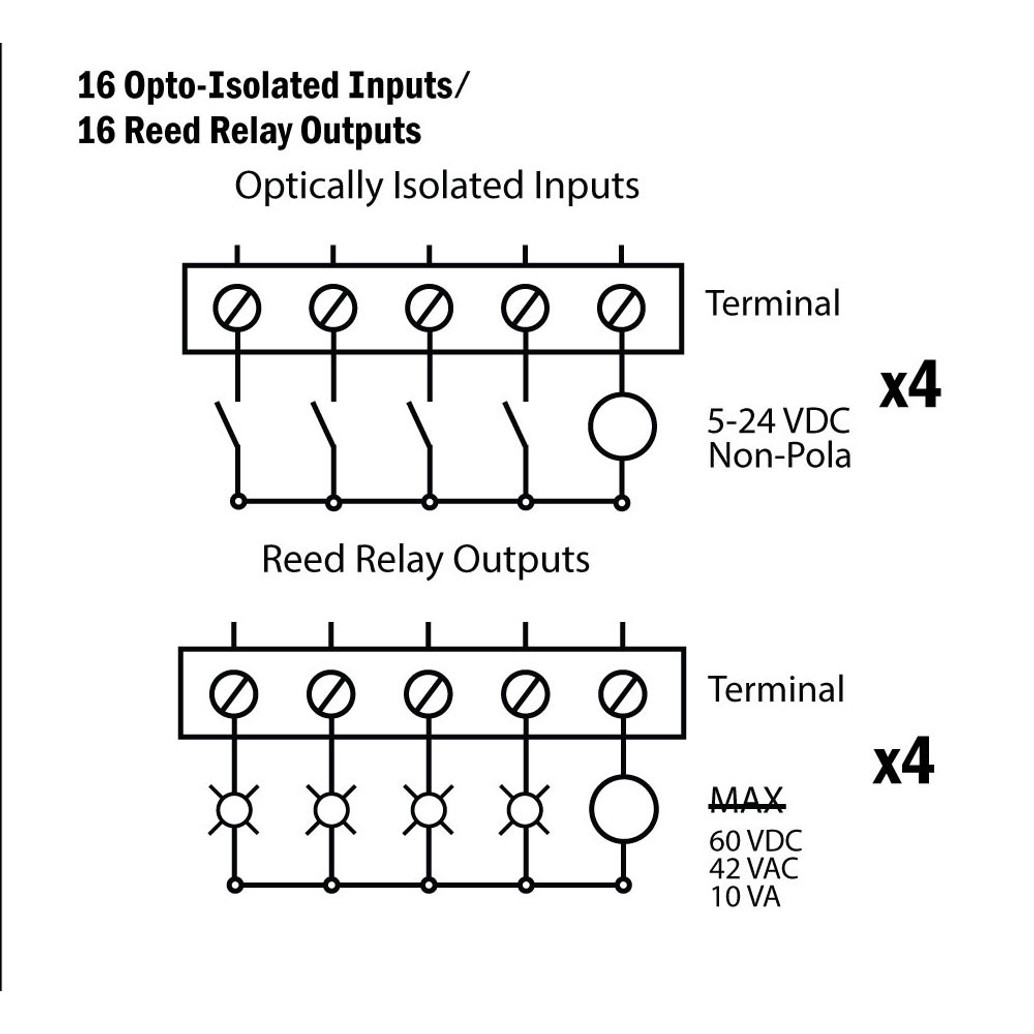

  • 16 Optically Isolated Inputs – Ideal for protecting sensitive equipment.

  • 16 Reed Relay Outputs – Provides long-lasting performance and fast switching.

  • Compatible with All SeaI/O Base Units – Ethernet, USB, RS-485, RS-232 interfaces.

  • Easy Cabling – Use the RJ45 connector or removable screw terminals.

  • Stackable Modules – Allows easy cascading via RS-485 signals.

  • Expansion Kit Included – Comes with metal straps and interconnect cables for easier setup.

Parameter Details
Model Number SeaI/O-410N
Host Interface RS-485
Input Type 16 Optically Isolated Inputs
Output Type 16 Reed Relay Outputs
Power Requirement 9-30 VDC @ 1.4W
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -50°C to 105°C (-58°F to 221°F)
Dimensions 7.5 (L) x 5.1 (W) x 1.3 (H)
Humidity Range 10-90% Relative Humidity/Non-Condensing
# of Inputs 16
# of Outputs 16
Family SeaI/O
Board/Enclosure Enclosure
