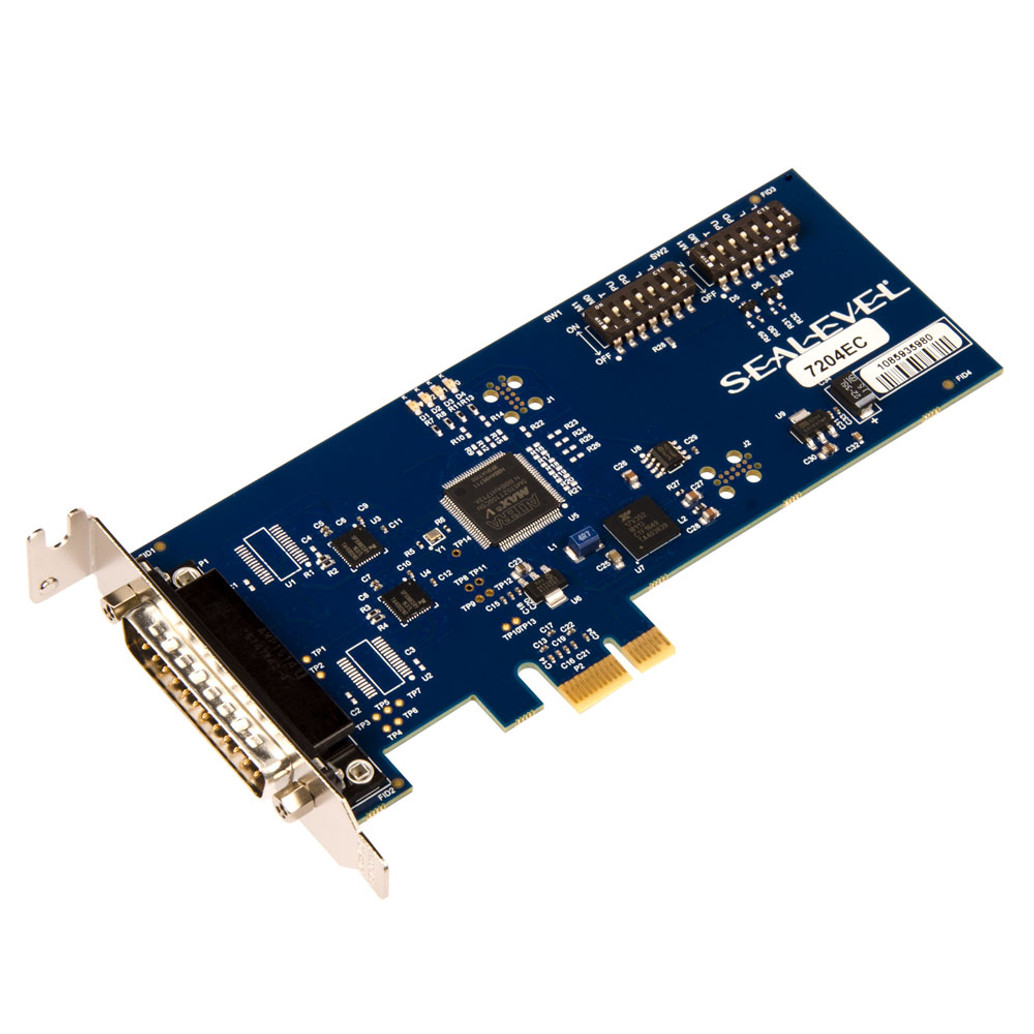

ULTRA-COMM+2.422.PCIe - Image 3
SEALEVEL | PCI Express

ULTRA-COMM+2.422.PCIe

Precision You Can Trust
NABL-Accredited Calibration | Available on Request

The 7204ec Ultra-COMM+2.422.PCIe is a low-profile PCI Express interface offering two configurable RS-422/RS-485 serial ports. With support for data rates exceeding 1 Mbps, it is ideal for data-intensive, high-speed communication applications..

Request Purchase
  • Detail
  • Special Features
  • Specification

The 7204ec Ultra-COMM+2.422.PCIe provides two RS-422/RS-485 serial ports, each featuring an ultra high-speed UART and 256-byte Tx/Rx FIFOs, supporting data rates exceeding 1 Mbps. The RS-485 mode includes an auto-enable feature for the transmitter, eliminating the need for software control and ensuring seamless integration with standard serial applications. The adapter’s flexible clock prescaler allows for a wide range of baud rates, making it ideal for industrial applications that require high-speed, reliable communication. The card is compatible with low-profile PCI Express slots, and includes a standard profile bracket for use with standard PCI slots. The package also includes a 36-inch cable with 2 DB9M connectors for easy connectivity.

  • 2 configurable RS-422/RS-485 serial ports

  • Ultra high-speed UART with 256-byte Tx/Rx FIFOs

  • Flexible clock prescaler supporting a wide range of baud rates

  • RS-485 mode automatically enables transmitter hardware

  • Sealevel SeaCOM software for easy installation on Windows

  • Compatible with PCI Express X1 slots

  • Includes 36-inch cable terminating in 2 DB9M connectors

  • Standard profile bracket included for versatile installation

  • Operating temperature range: 0°C to 70°C

  • Ideal for data-intensive applications requiring fast and reliable communication

  • Product Name: 7204ec Ultra-COMM+2.422.PCIe

  • Host Interface: PCI Express X1

  • Number of Ports: 2 (RS-422, RS-485)

  • Max Data Rate: Exceeds 1 Mbps

  • Max Data Distance: 4000 feet

  • Operating Temperature: 0°C to 70°C (32°F to 158°F)

  • Communications Chip: Ultra high-speed UART

  • Dimensions: 5.75" (L) x 2.54" (W)

  • Electrical Interface: RS-422, RS-485

  • Serial Connector(s): DB9M

  • Cable Length: 36 inches

  • Software: SeaCOM driver for Windows
