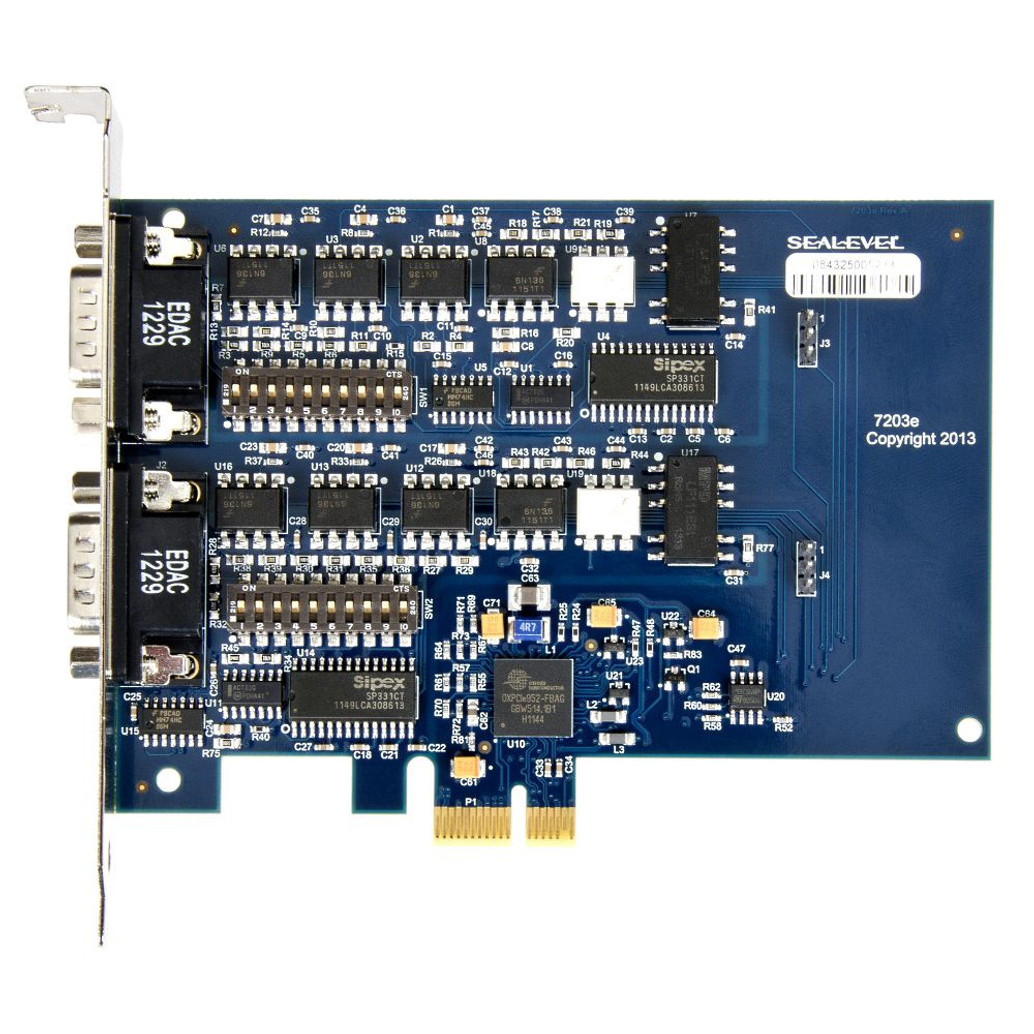

ISO COMM2.PCIe - Image 3
SEALEVEL | PCI Express

ISO COMM2.PCIe

Precision You Can Trust
NABL-Accredited Calibration | Available on Request
Rs. 27813.00

The ISO COMM2 PCI is a high-performance, optically isolated 2-port PCI interface adapter, configurable for RS-232, RS-422, or RS-485. Designed for high-speed communication, it supports data rates up to 921.6K bps and is ideal for data-intensive applications..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

The ISO COMM2 PCI is an advanced PCI Express interface that offers two optically isolated serial ports for communication over RS-232, RS-422, or RS-485. Built to support high-speed, data-intensive applications, each port uses the 16C952 UART, which provides 128-byte Tx/Rx FIFOs, enabling data rates up to 921.6K bps. For RS-485 applications, the adapter automatically controls the RS-485 driver in hardware, eliminating the need for software control and preventing bus contention or data corruption. It also features DIP-switch selectable termination for optimal multi-drop communication. The ISO COMM2 PCI is compatible with both Windows and Linux operating systems and is backed by Sealevel’s SeaCOM software.

  • Optically isolated serial ports for reliable and noise-free communication

  • Each port configurable for RS-232, RS-422, or RS-485

  • Utilizes 16C952 UART with 128-byte Tx/Rx FIFOs for high-speed performance

  • Max data rate of 921.6K bps for fast, efficient data transfer

  • Automatic RS-485 driver control in hardware for seamless operation

  • DIP switches for selective RS-485 network termination

  • Compatible with Windows and Linux operating systems via SeaCOM software

  • 9-bit framing support for compatibility with legacy 16550 software applications

  • Flexible 8-bit clock prescaler for a wide range of baud rates

  • Compliant with RoHS directives

  • Product Name: ISO COMM2 PCI: 2 Port PCI Isolated RS-232/422/485 Adapter

  • Host Interface: PCI Express

  • Number of Ports: 2

  • Electrical Interface: RS-232, RS-422, RS-485

  • Max Baud Rate: 921.6K bps

  • Max Data Distance: 4000 feet

  • Operating Temperature: 0°C to 70°C (32°F to 158°F)

  • Communications Chip: 16C952

  • Clock Prescaler: 8-bit with 1/8 steps

  • Termination: Selectable via DIP switches (RS-485)

  • Software: SeaCOM driver (Windows/Linux)

  • Compliance: RoHS directive
