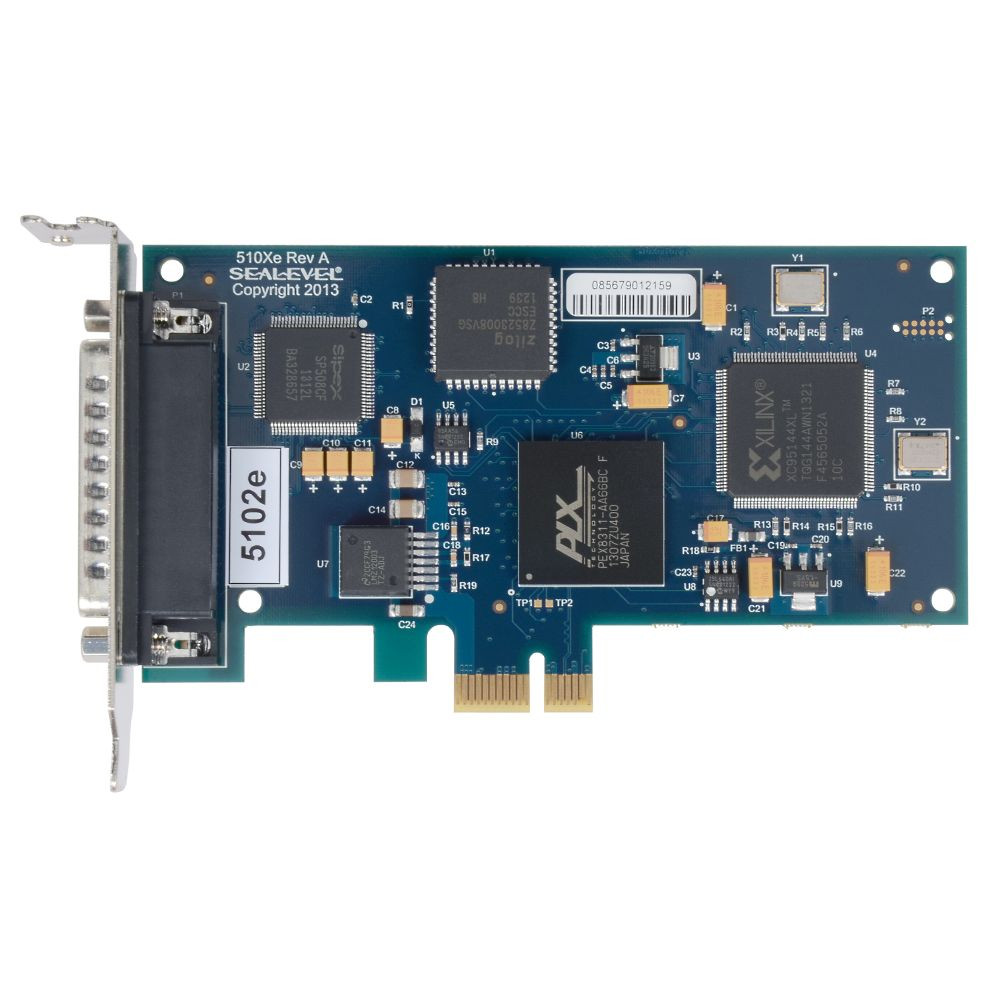

ACB-MP.PCIe - Image 3
SEALEVEL | PCI Express

ACB-MP.PCIe

Precision You Can Trust
NABL-Accredited Calibration | Available on Request
Rs. 86868.00

The ACB-MP.PCIe is a low-profile PCI Express synchronous serial interface offering a single configurable channel for RS-232, RS-422, RS-485, RS-530, RS-530A, or V.35. It supports data rates up to 128K bps in burst mode, making it ideal for various specialized applications..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

The ACB-MP.PCIe offers a flexible, high-performance solution for synchronous serial communication. It provides a single channel that can be configured for various interfaces, including RS-232, RS-422, RS-485, RS-530, RS-530A, and V.35. This adaptability makes it ideal for industries requiring high-speed, reliable communication, such as DDS, military communications, and banking systems. The Zilog Z85230 ESCC ensures stable data transmission, while the DPLL and 128K bps burst mode provide synchronization and high throughput. The adapter supports various protocols, including HDLC/SDLC, Monosync, Bi-sync, and Raw modes, with Sealevel’s SeaMAC driver simplifying integration with Windows operating systems. It is also easy to install with included terminal blocks, adapter cables, and a standard profile bracket for full-height slots.

  • 1 configurable serial port supporting RS-232, RS-422, RS-485, RS-530, RS-530A, or V.35

  • Zilog Z85230 Enhanced Serial Communication Controller (ESCC) for reliable performance

  • Digital phase lock loop (DPLL) for synchronization

  • Data rates up to 128K bps in burst mode

  • HDLC/SDLC protocols and support for Monosync, Bi-sync, and Raw modes

  • SeaMAC synchronous serial driver for software support

  • Compatible with low-profile PCI Express slots (standard profile bracket included)

  • Ideal for DDS, military, banking, and other specialized communication applications

  • Programming samples and source code provided for software development

  • Product Name: ACB-MP.PCIe: PCI Express 1-Port Multi-Interface Sync Adapter

  • Host Interface: PCI Express

  • Number of Ports: 1 (configurable for RS-232, RS-422, RS-485, RS-530, RS-530A, or V.35)

  • Max Data Rate: 128K bps in burst mode

  • Max Data Distance:

    • RS-232: 50 feet

    • RS-485: 4000 feet

  • Operating Temperature: 0°C to 70°C (32°F to 158°F)

  • Communications Chip: Zilog Z85230

  • Electrical Interface: RS-232, RS-422, RS-485, RS-530, RS-530A, V.35

  • Serial Connector(s): [Specific connectors not provided, but based on configuration]

  • Software: SeaMAC synchronous serial driver

  • Brackets: Low profile (standard profile bracket included)
