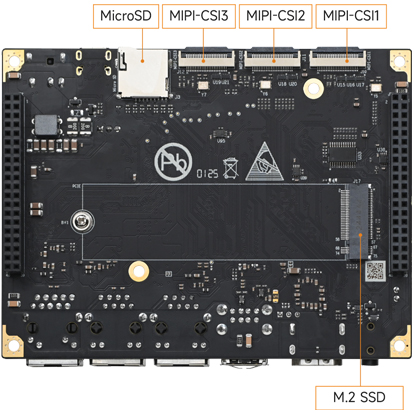

MYC-YR3562 System-On-Module - Image 3
MYIR | System-On-Modules (SOMs)

MYC-YR3562 System-On-Module

Precision You Can Trust
NABL-Accredited Calibration | Available on Request

The MYC-YR3562 SOM is a high-performance, low-power system-on-module powered by the Rockchip RK3562 processor. It offers a range of features including a 1TOPS NPU, 3D GPU, multiple video output interfaces, and robust connectivity options, making it ideal for embedded systems in industrial, IoT, and multimedia applications..

Request Purchase
  • Detail
  • Special Features
  • Specification

  • Processor: Rockchip RK3562 (1.2-2.0GHz Quad-core ARM Cortex-A53, 1 TOPS NPU).

  • Memory: 1GB/2GB LPDDR4.

  • Storage: 8GB/16GB eMMC, 32KB EEPROM.

  • Graphics: Arm Mali-G52 GPU.

  • Video Support: 4K H.265 and 1080p H.264 decoding, 1080p H.264 encoding.

  • Expansion I/O: 164-pin Castellated-Hole, 58-pin LGA interfaces, supporting UART, CAN, I2C, SPI, PWM, and more.

  • Software: Linux 6.1, Debian 12.

  • Processor: Up to 2.0GHz Quad ARM Cortex-A53 (RK3562) or 1.8GHz (RK3562J) with NPU.

  • Memory: 1GB/2GB LPDDR4.

  • Storage: 8GB/16GB eMMC.

  • Graphics: Arm Mali-G52 3D GPU.

  • Video: Supports 4K H.265, 1080p H.264 decoding/encoding.

  • I/O Expansion: 164-pin Castellated-Hole and 58-pin LGA interfaces.

  • Operating System: Linux 6.1.99, Debian 12.

  • Dimensions: 43mm x 45mm.

  • Power Supply: 3.3V/2A.

  • Working Temperature: 0°C to 70°C (commercial) or -40°C to 85°C (industrial).

  • Expansion: Supports MIPI-CSI camera, MIPI-DSI, HDMI, LVDS, PCIe, and USB.

  • User I/O: GPIO, UART, SPI, I2C, CAN, and more.

Ideal for industrial control, robotics, IoT, multimedia, energy systems, smart electric devices, medical devices, and more.
