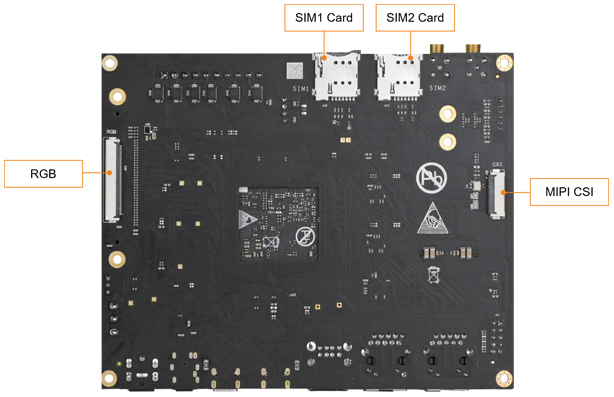

MYC-YG2UL CPU Module - Image 3
MYIR | System-On-Modules (SOMs)

MYC-YG2UL CPU Module

Precision You Can Trust
NABL-Accredited Calibration | Available on Request

The MYC-YG2UL CPU Module is a compact and high-performance System-on-Module (SoM) featuring the RENESAS RZ/G2UL processor. With a single-core ARM Cortex-A55 at 1.0GHz and a 200MHz Cortex-M33, it is ideal for entry-level industrial gateway control and embedded devices with simple GUI capabilities. The module supports various peripheral interfaces, including dual Gigabit Ethernet, dual CAN-FD, and USB 2.0, and is equipped with 512MB DDR3L and 4GB eMMC storage. It runs on Linux 5.10, Yocto, and OpenWrt 22.03 OS..

Request Purchase
  • Detail
  • Special Features
  • Specification

The MYC-YG2UL CPU Module is an industrial-grade, compact SoM based on the RENESAS RZ/G2UL processor, which includes a 1.0GHz single-core ARM Cortex-A55 CPU and a 200MHz ARM Cortex-M33 for low-power processing. It supports a range of peripherals, such as dual Gigabit Ethernet, dual CAN-FD, and multiple USB ports, as well as MIPI CSI camera input and parallel display output. The module is equipped with 512MB DDR3L memory, 4GB eMMC storage, and comes with an EEPROM for further flexibility. The expansion interfaces, combined with robust software support (Linux, Yocto, OpenWrt), make this module ideal for applications in industrial control, HMI, IoT devices, and embedded systems.

  • Processor: RENESAS RZ/G2UL, Single-core ARM Cortex-A55 @ 1.0GHz, Cortex-M33 @ 200MHz

  • Graphics & Video: 16-bit DDR3L/DDR4-1600 (in line ECC), MIPI CSI-2 (4 lanes) Camera Interface, Parallel Display Interface

  • Memory: 512MB DDR3L, 4GB eMMC

  • Expansion Interface: 140-pin Castellated-Hole and 50-pin LGA

  • Connectivity: 2x Gigabit Ethernet, 2x USB 2.0, 2x CAN FD, 4x I2C, 3x SPI

  • Power Management: Power Management IC (PMIC)

  • OS Support: Linux 5.10, Yocto, OpenWrt 22.03

  • Processor: RENESAS RZ/G2UL, ARM Cortex-A55 @ 1.0GHz, Cortex-M33 @ 200MHz

  • Graphics & Video: 16-bit DDR3L/DDR4, MIPI CSI-2 Camera Interface, Parallel Display Interface

  • Memory: 512MB DDR3L, 4GB eMMC

  • Storage: 4GB eMMC

  • Power Supply: 5V/1A

  • Power Management: Power Management IC (PMIC)

  • Expansion Interface: 140-pin Castellated-Hole, 50-pin LGA

  • Connectivity: 2x Gigabit Ethernet, 2x USB 2.0, 2x CAN FD, 4x I2C, 3x SPI

  • GPIO: Up to 82 GPIOs

  • OS Support: Linux 5.10, Yocto, OpenWrt 22.03

  • Operating Temperature: -40~85°C (industrial grade)
