Home Fluke | Digital Multimeter Fluke 117 Electrician's Multimeter with Non-Contact Voltage
Fluke 117 Electrician's Multimeter with Non-Contact Voltage - Image 1
Fluke 117 Electrician's Multimeter with Non-Contact Voltage - Image 2

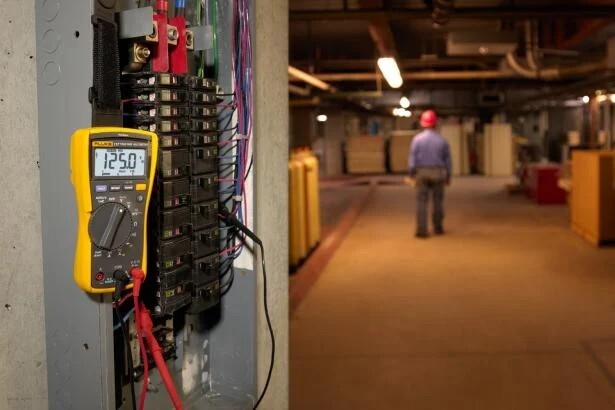

Fluke 117 Electrician's Multimeter with Non-Contact Voltage - Image 3
Fluke | Digital Multimeter

Fluke 117 Electrician's Multimeter with Non-Contact Voltage

Precision You Can Trust
NABL-Accredited Calibration | Available on Request

The Fluke 117 Electrician's Multimeter is a compact, True-RMS digital multimeter designed specifically for electricians. It features integrated non-contact voltage detection (VoltAlert™), AutoVolt™ automatic AC/DC voltage selection, and a low-impedance (LoZ) mode to prevent false readings from ghost voltages. With its True-RMS capability, it ensures accurate measurements on non-linear loads. The multimeter is ideal for use in commercial buildings, hospitals, and schools..

Request Purchase
  • Detail
  • Special Features
  • Specification

The Fluke 117 is engineered to meet the demanding needs of electricians. Its integrated VoltAlert™ technology allows for quick detection of live circuits without making contact, enhancing safety and efficiency. The AutoVolt™ feature automatically selects the appropriate AC or DC voltage range, reducing the need for manual range adjustments. The LoZ mode helps eliminate false readings caused by ghost voltages, ensuring accurate diagnostics. With True-RMS measurement capability, the Fluke 117 provides precise readings on distorted or noisy signals, making it suitable for a wide range of electrical applications.

  • VoltAlert™ Technology: Non-contact voltage detection for quick identification of live circuits.

  • AutoVolt™: Automatically selects AC or DC voltage for faster measurements.

  • LoZ Mode: Low input impedance to eliminate false readings due to ghost voltage.

  • True-RMS Measurement: Ensures accurate readings on non-linear loads.

  • Backlit Display: Large white LED backlight for visibility in low-light conditions.

  • Compact Design: Easy to carry and use in tight spaces.

  • Safety Rated: CAT III 600 V safety rating for protection against electrical hazards.

Feature Specification
Voltage (AC/DC) 600 V AC/DC
Current (AC/DC) 10 A AC/DC (20 A overload for 30 seconds max)
Resistance 600 Ω to 40 MΩ
Capacitance 1 nF to 9999 μF
Frequency 99.99 Hz to 50.00 kHz
Diode Test 2.000 V
Continuity Audible beep for resistance < 20 Ω
Display Digital: 6,000 counts, updates 4 per second
Backlight Large white LED for visibility in low-light conditions
Battery 9V Alkaline (IEC 6LR61), 400 hours typical (without backlight)
Operating Temperature -10°C to +50°C
Storage Temperature -40°C to +60°C
Safety Rating CAT III 600 V, Pollution Degree 2
Fuse for A Input 11 A, 1000 V FAST Fuse (Fluke PN 803293)
Included Accessories 4 mm silicone test lead set, holster, user manual
