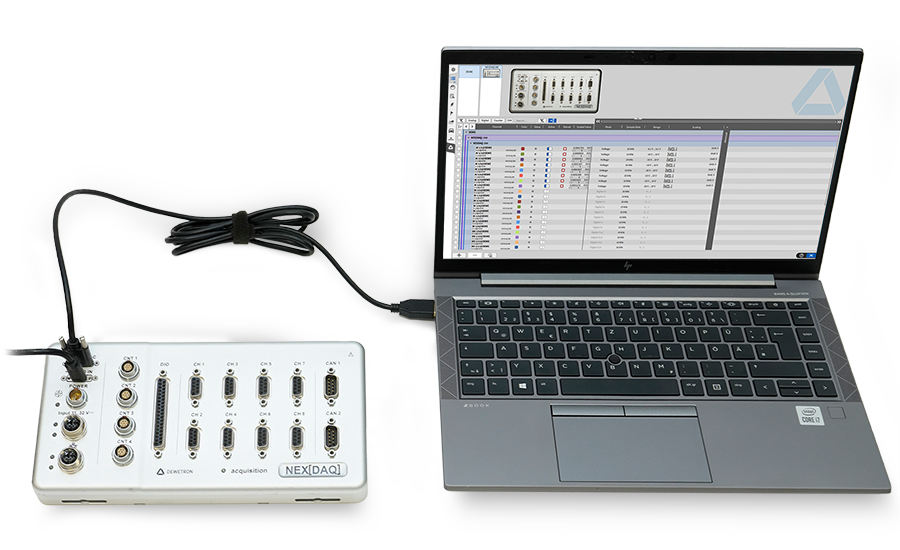

NEX[DAQ] - Image 3
Dewetron

NEX[DAQ]

Precision You Can Trust
NABL-Accredited Calibration | Available on Request

NEXDAQ is a high-speed, compact front-end data acquisition system designed for distributed and time-synchronized measurements. It supports a single TRION3 module and is optimized for low-latency streaming, making it ideal for powertrain, NVH, and mobile testing environments..

Request Purchase
  • Detail
  • Special Features
  • Specification

NEXDAQ is purpose-built for distributed measurement applications where size, speed, and precision matter. It supports one TRION3 module, allowing users to tailor the system to specific input needs such as voltage, current, IEPE, thermocouples, or strain. It connects to a host system via 1 GbE or 10 GbE Ethernet and streams real-time data directly into OXYGEN.

Thanks to its rugged, fanless design and PTP-based synchronization, NEXDAQ is ideal for high-channel DAQ networks in automotive and industrial testing. Whether used for e-motor efficiency studies or NVH analysis, NEXDAQ ensures precise timing and consistent performance across all units in a distributed setup.

Its remote Linux-based architecture enables it to operate as a front-end measurement unit, eliminating the need for an internal PC and reducing overall system complexity. When paired with other DEWETRON systems, NEXDAQ extends measurement range without sacrificing accuracy or bandwidth.

  • Single-slot design for any TRION3 module

  • Lightweight and ultra-compact, ideal for space-constrained setups

  • High-speed data acquisition up to 10 MS/s per channel

  • Real-time data streaming via 1 GbE and optional 10 GbE

  • Time synchronization via PTP, GPS, IRIG, and TRION-SYNC

  • Linux-based firmware for remote front-end operation

  • Passive cooling system for silent operation

  • Optional shock-absorbing transport case for field use

  • Seamless integration into OXYGEN software environment

Specification Details
Module Slots 1 (TRION3 only)
Sampling Rate Up to 10 MS/s per channel
Supported Inputs Depends on installed TRION3 module
Data Throughput Up to 1 GB/s via 10 GbE
Interfaces 1 GbE (standard), 10 GbE (optional)
Synchronization Options PTP, GPS, IRIG, TRION-SYNC
Cooling Passive (fanless)
Operating Mode Linux-based front-end system
Power Supply 10–32 V DC input
Housing Compact aluminum enclosure, passive ventilation
Transport Option Optional rugged shock-absorbing carrying case
Software Compatibility OXYGEN and TRION SDK
